$12,499.00 EX-GST
The K50E is used by Cable Contractors. This kit provides certification.  Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter. Test Adapters Added with Standard Components: Set of...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Sku: TESTPRO-K50E
AEM

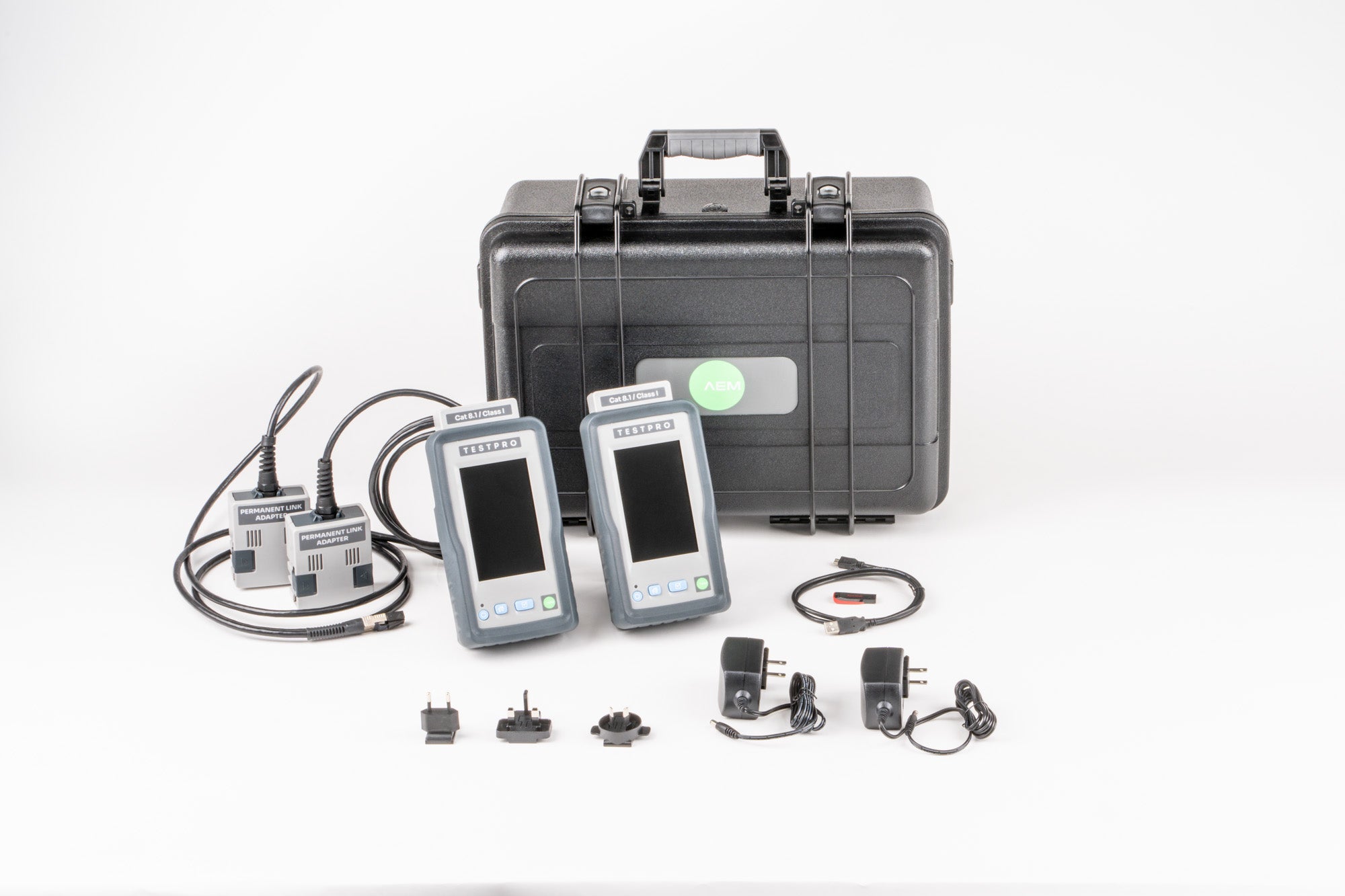

The K50E is used by Cable Contractors. This kit provides certification.  Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

Test Adapters Added with Standard Components:

  • Set of AD-CAT8.1-CH Channel Adapters
  • Set of AD-CAT8.1-PL Permanent Link Adapters

    TestPro Kit Configurations

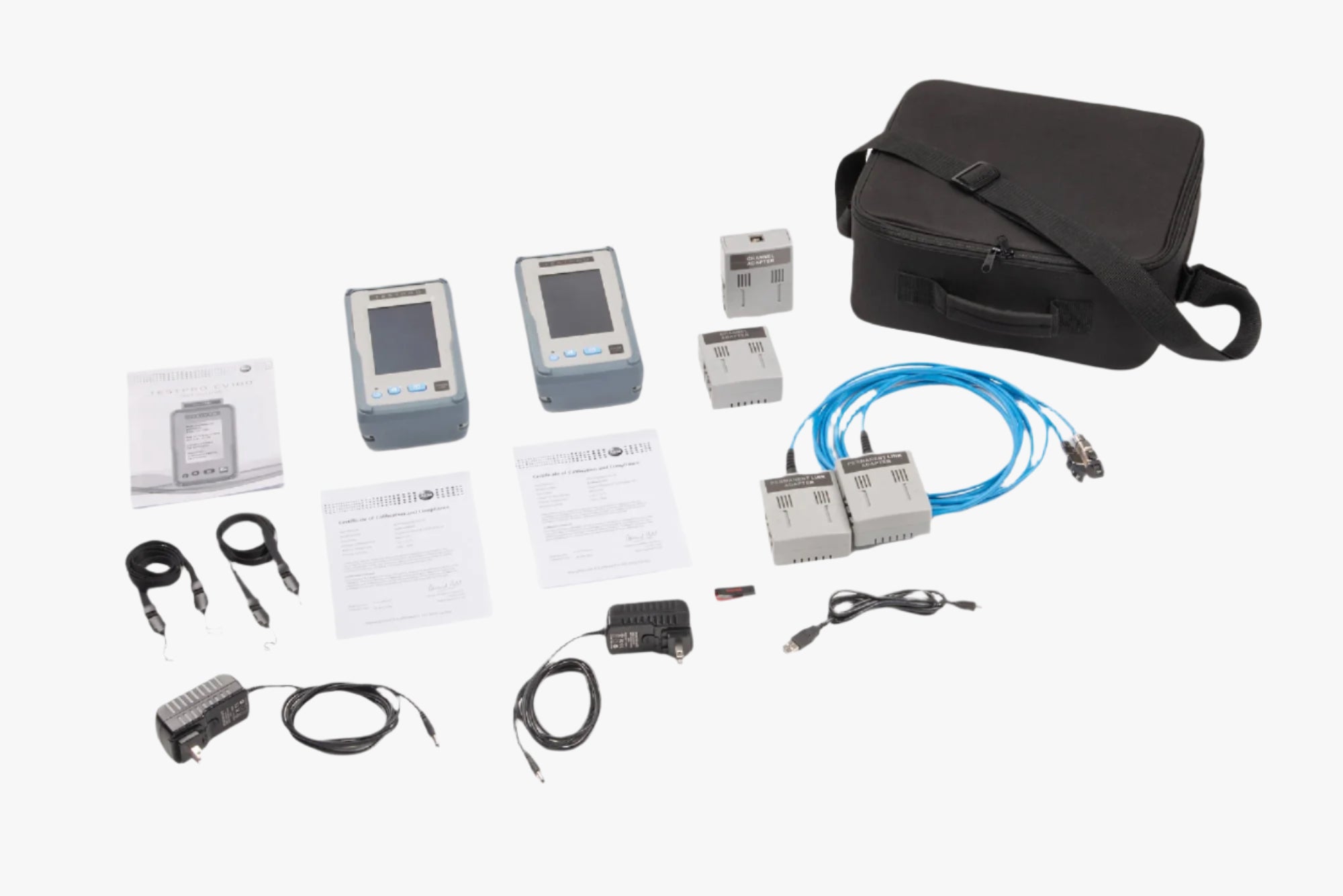

    Standard Components Included in All TestPro Kits

    • Two TestPro Modular Platforms
    • Certificates of Calibration
    • USB Flash Drive with TestDataPro PC software
    • Carrying Case/s
    • Two Wiring Rack Hanging Straps
    • Quick Start Guide
    • USB Cable
    • Power Adapters with region-specific pins

    Copper Certification

    The TestPro platform features the most sophisticated RF measurement engine available and has independent ETL/ Intertek verification of ANSI/TIA-1152-A (Levels IIIe and 2G), IEC 61935-1 Ed. 4 (Levels IIIe, IV and V) and IEC 61935-1Ed. 5 Draft 46/595/CD (Levels VI Class I and II), and a 3GHz frequency range. What this means to you is that you can be assured of your certification results for CAT5e – CAT8 with an accuracy range that not only exceeds industry standards but even older well-known cable testers and that your testing needs will be met today and tomorrow. TestPro has also been approved by industry leading cable manufactures in support of their warranty programs.

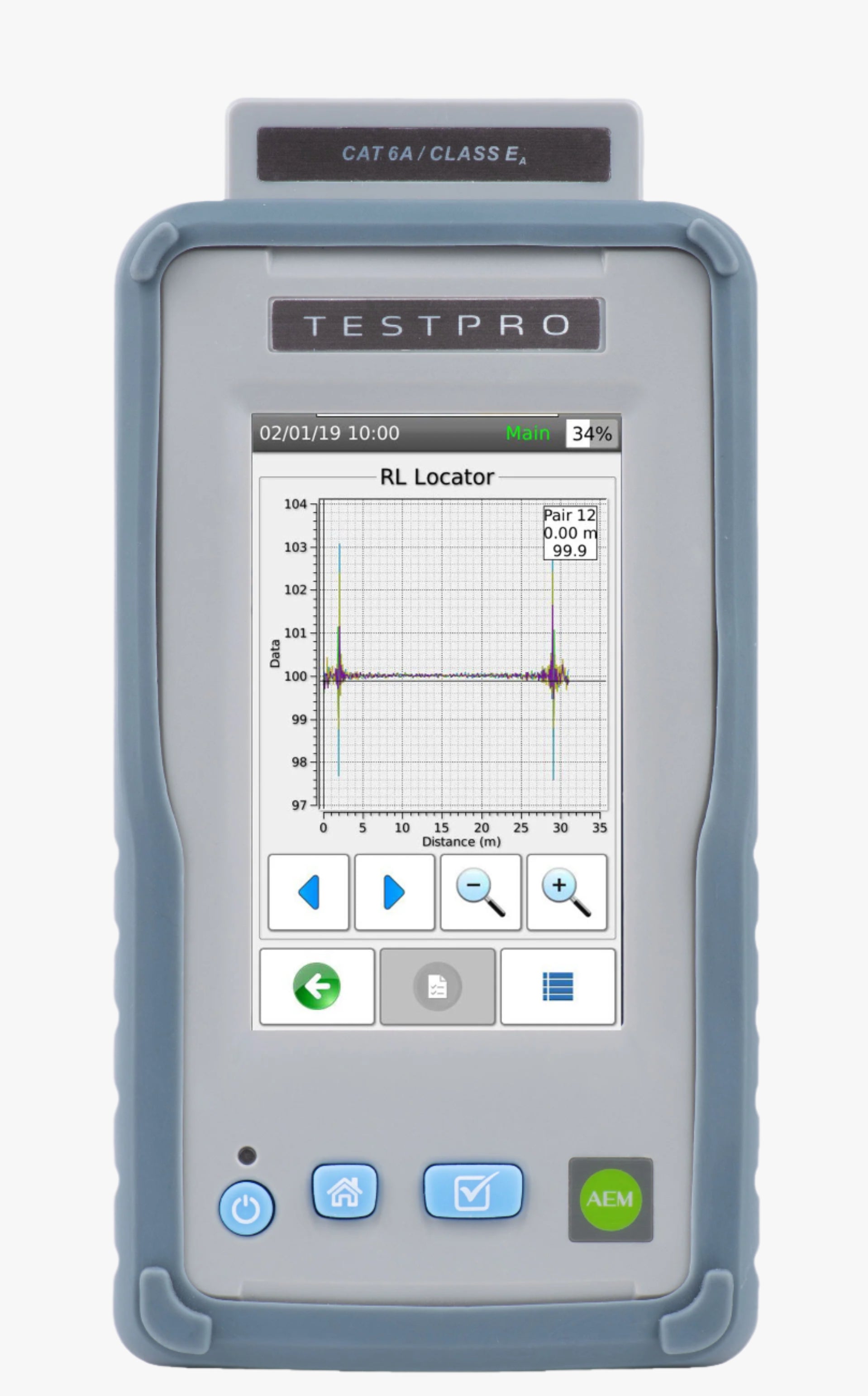

    TestPro’s LiveWiremapTM facilitates rapid cable continuity testing with automatic display of result the moment the cable is attached. TestPro offers fault location for Return

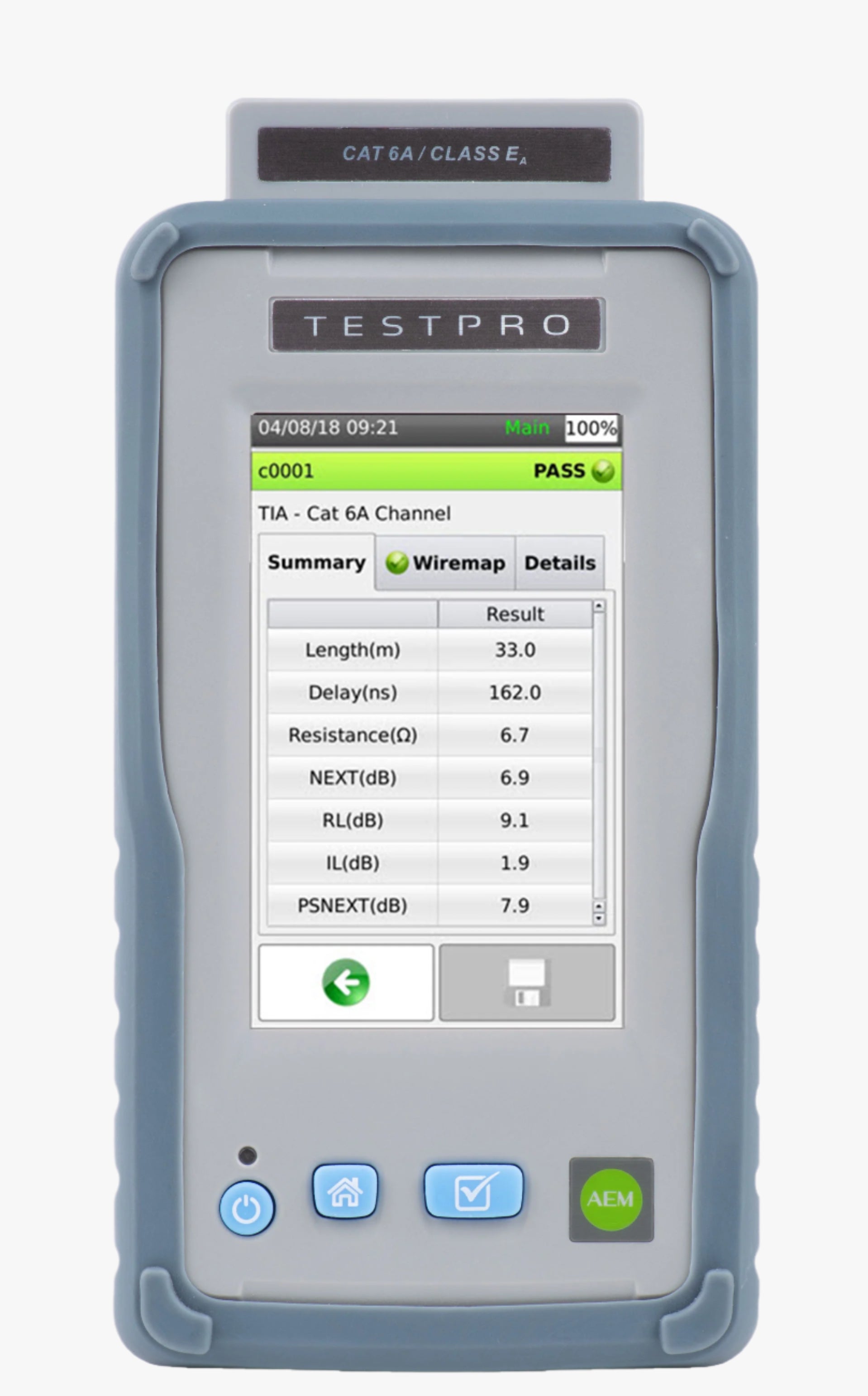

    Loss and NEXT aiding in problem identification. Support for MPTL, Patch Cord, Cat8, and Coax is available through hot swappable adapters. At the completion of the Autotest, you get a highly visible Pass or Fail indication, and test results can be automatically saved with a customizable labeling scheme.
    TestPro will store over 10,000 results in memory, but when it’s time to prepare printed reports, the included TestDataPro PC based software provides a way to organize and manage results and provide printed reports. If you’re testing PoE
    and Multi-Gigabit Ethernet in addition to cable certification, you can even produce printed reports that include all three measurements by combining the results of a certification Autotest and a Multi-Gigabit Autotest. Test results can be imported into TestDataPro by either direct connect USB cable or USB Flash drive. Cloud based results data transfer available in Q3/20.

    Extended Care

    Extended care provides you with peace of mind that your investment will be protected with all code updates, calibration service if applicable, and product repair should your test equipment become damaged.
